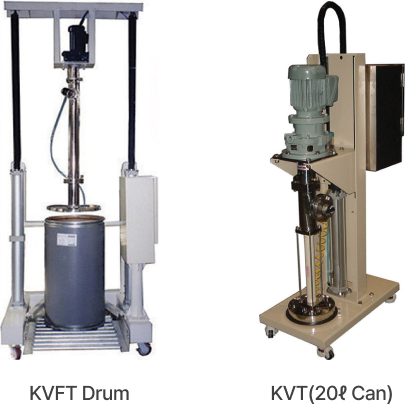

KORKVT/KVFT Vertical Type with LifterTransferring super-viscous pastes in the container
KVT General Use, KVFT Sanitary
The vertical MONAS pump with lifter can be automatically raised and lowered. In order to take out the ultra-high-viscosity pastes in the drum, a press-fit plate is installed at the suction end of the MONAS-KV pump, and the high-viscosity paste is pressed and transferred.
Features
- Pushes thick paste with pulsation-free and metered flow
- Free flow control
- Directly driven by electric motor with noiseless and energy-saving type
- All models are available as sanitary and portable type
- It is designed to meet the container to be used
Applications
- Gluten, alcohol residue, miso, cream, grease, Vaseline, paint, sealant, etc
- Discharge volume: Max. 40ℓ/min, Pressure: Max. 24kgf/cm²
- Performance and dimensions
- Filling valve combination KVT+FV
Performance and dimensions

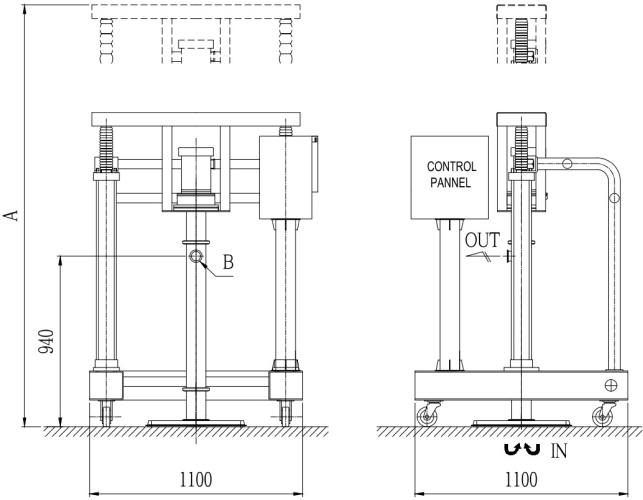

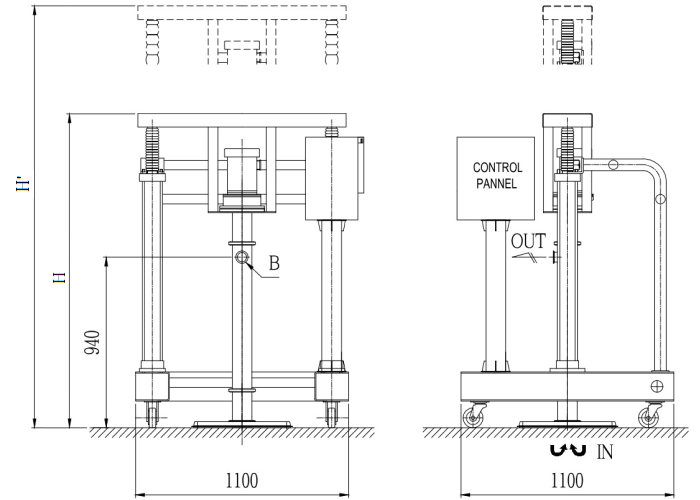

Lifter attachment type KVT for drum performance and dimensions
| Model | Discharge Pressure (kgf/cm²) |
Flow rate (l/min) |
Power (kW) |
Dimensions (appr.) |
Wt (kg) |
||
|---|---|---|---|---|---|---|---|
| H - H'(mm) | B(Ferrule) | D(Cylinder diameter) | |||||
| KVFT15 | 6 | 0.8 | 0.4 | 1400 - 2600 | 1 1/2S | Ø100 | 80 |
| 2KVFT15 | 12 | 0.8 | 0.4 | 1400 - 2600 | 1 1/2S | Ø100 | 100 |
| KVFT20 | 6 | 1.8 | 0.4 | 1400 - 2600 | 1 1/2S | Ø100 | 105 |
| 2KVFT20 | 12 | 1.8 | 0.75 | 1600 - 2800 | 1 1/2S | Ø100 | 110 |
| KVFT30 | 6 | 9.0 | 0.75 | 1600 - 2800 | 2S | Ø100 | 115 |
| 2KVFT30 | 12 | 9.0 | 1.5 | 1600 - 2800 | 2S | Ø100 | 135 |
| KVFT40 | 6 | 20.0 | 1.5 | 1600 - 2800 | 2 1/2S | Ø160 | 145 |
| 2KVFT40 | 12 | 20.0 | 1.5 | 1600 - 2800 | 2 1/2S | Ø160 | 170 |
| KVFT50 | 6 | 40.0 | 2.2 | 2200 - 3600 | 3S | Ø160 | 180 |
| 2KVFT50 | 12 | 40.0 | 2.2 | 2200 - 3600 | 3S | Ø160 | 195 |
- Air supply is required for lift operation
Example of filling valve combination with KTV type - KVT+FV
Without press-fitting plate
- The compact combination of KVT plus FV enables suction from larger containers and direct filling into smaller containers
- Container exchange is easy and convenient.
With press-fitting plate
- Pressing the ultra-highviscosity material in the container with a press-fitting plate, it is sucked to the pump suction and filled to small containers with filling valve
- Quiet and energy-saving operation
